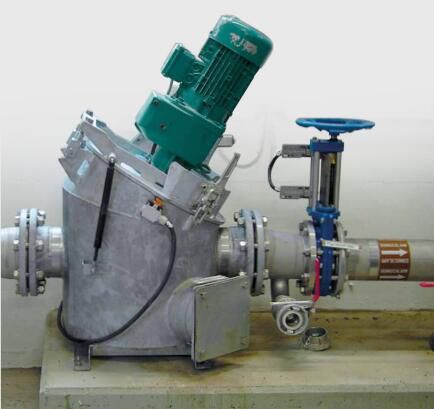

Centrifugal pump

for wastewaterelectricindustrial

Maximum flow could reach 300 m³/hr Maximum Total Solid content allowed could reach 10% Structural design for M-Ovas® series Grinding Pump: 1,Cavity The housing is equipped with a sandstone settling chamber in accordance with the principles of hydrodynamics,with a upper-positioned hole for cleaning. Open the cover of hole,the sedimentation can be easily removed. The housing is galvanized or made of stainless steel to prevent corrosion. 2,Cover The chopper is integrated on the cover. There is a cylinder on the cover used for assisting in opening the cover. In this way, it is more convenient to clean up the solid material in the settling chamber. 3,Chopper The cutter blade is made of wear-resistant hardened steel. The chopping performance is optimized by the cutterhead with the automatic adjustment of the blade mechanism. The blade is made of wear-resistant hardened steel. The flywheel supports the chopping operation and reduces the power consumption of driving. Cutters and blades can be replaced easily and no need of disassembly of pipe fittings. 4,Axis Sealing Mechanical sealing of Lubrication quenched hardened alloyed steel end to prevent material leakage.
