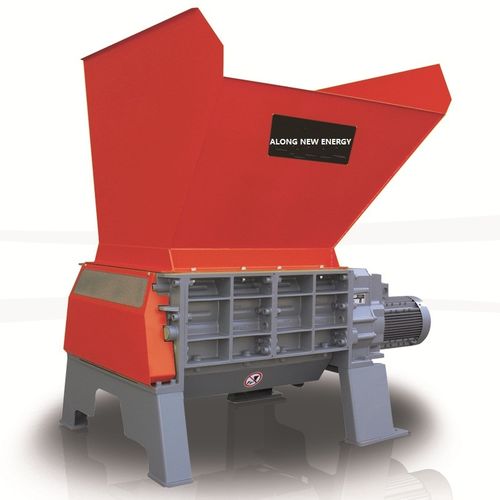

Double-shaft shredder ETS series

double-shaft shredder
double-shaft shredder
double-shaft shredder
Add to favorites
Compare this product


Characteristics

Number of shafts
double-shaft
Power

Min.: 15 W

Max.: 110 W

Rotational speed

Min.: 17 rpm
(107 rad.min-1)

Max.: 43 rpm
(270 rad.min-1)

Description

We can provide ETS series of high-quality double-shaft shredder, produced by a wholly-owned subsidiaries in China of a French brand with 30 years history. Structural characteristics: 1.Feeding hopper. Special design of the feed hopper could prevent material splash when working. Equipped with large feed port, convenient for forklift or conveyor to feed. Specially designed hopper shape to meet the special needs and to ensure continuous feeding, simple operation, without any manual operation. 2.Rotor. The strong durable rotor surface is concave designed according to different types of feedstock. Two-side replaceable rotary knives are installed on a special seat. 3.Rotor bearing. The solid bearing block is mounted outside of machine, separate from the crushing chamber to prevent invasion of impurities, prolong machine life-time and reduce cost of maintenance. 4.Screen. The screen for sieving is mounted under rotor, its aperture is designed in accordance with the solid size after shredded as required(10~40mm). The hinged sieve frame facilitates the disassembly, the replacement is easy to operate, or the screen is not required. 5.Driving device. The motor and gearbox are linked by helical gears, driven by a large gearbox mounted on the top of spindle.
