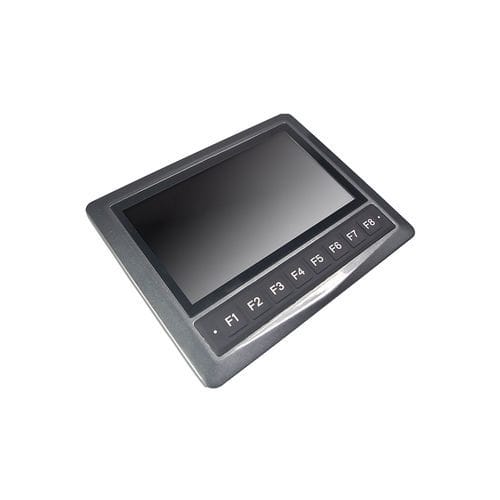

Color display SPD-070-Cx

with touch screen800 x 4807"

The 7 inch mobile machine display SPD-070-Cx series features 1 CAN bus interface, 1 Ethernet communication port, and a resolution of 800x480. Additionally, 7 Inch Mobile Machine Display Spd-070-Cx Series offers high protection level, high integration and fast response speed, making it an ideal choice for displays in distributed application scenarios. 7 Inch Mobile Machine Display Features: ●Programming Support: CoDeSys 3.5 programming. ●Connectivity: 1 CAN port with CANOpen support. ●Communication Interface: 1 Ethernet interface. ●User Input: 8 buttons for user interaction. ●Status Indicators: 2 LEDs for status indication. ●Protection: All input ports equipped with power supply misconnection protection. 7 Inch Mobile Machine Display Features: ●Casing: Durable aluminum alloy casing for rugged environments. ●Weight: Lightweight design, only 0.4kg. ●Operating Temperature: Wide operating temperature range from -20 to 70℃. ●Display Type and Size: Vibrant 7-inch 24-bit color screen. ●Display Area: Ample display area of 154.07×85.98 ●Brightness Options: Adjustable brightness with options of 400 or ≥600cd/m2. ●Resolution: Crisp resolution of 800×480 for clear visuals. ●Programmable Function Keys: 8 programmable function keys for customizable operations. ●Backlight Keys: 8 backlight keys with independent display and adjustable backlight control.
