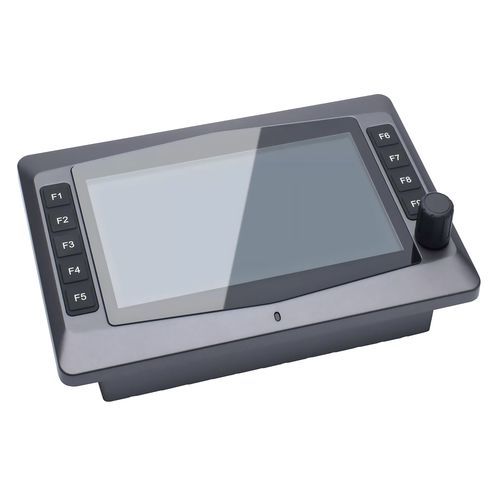

Capacitive touch screen display SPD-070-Fx series

1024 x 6007"RS-232

Quick start Fx series 7" Display SPD-070-Fx series Quick start ≤ 5s 5 CAN bus interfaces 1 RS232 serial communication port 1 USB 2.0 OTG port, 1 Ethernet port 4 AHD/TVI/CVI/CVBS video inputs, 20 IO resources The SPD-070-Fx series capacitive touch screen display features 9 buttons and 1 knob (with a button). It has a screen resolution of 1024*600 pixels, a typical contrast ratio of 700, and a brightness of 600 cd/m². It supports Codesys 3.5 programming. The display is equipped with: - 5 CAN bus interfaces - 1 RS232 serial communication port - 1 USB 2.0 OTG port - 1 Ethernet port (dedicated for program debugging and downloading) - 4 AHD/TVI/CVI/CVBS video inputs - 20 IO resources Additionally, it integrates a voice alarm function and supports Bluetooth communication, allowing for wireless upgrades via a mobile app.
