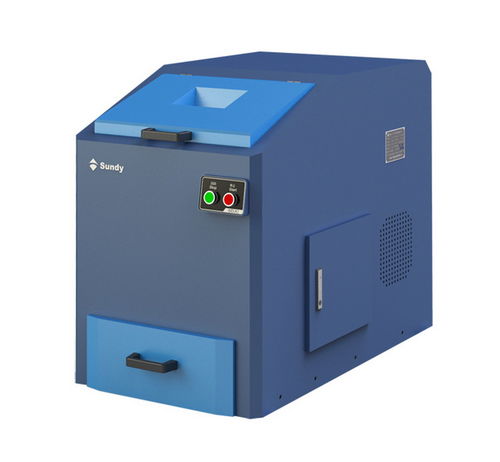

Jaw crusher SDJC series
stationarycoal

jaw crusher
jaw crusher
Add to favorites
Compare this product


Characteristics

Technology
jaw
Mobility
stationary
Other characteristics
coal
Capacity

Max.: 2,000 kg/h
(4,409.2 lb/h)

Min.: 45 kg/h
(99.2 lb/h)

Description

Application: SDJC Jaw Crusher is designed to intermittently or continuously crush medium hard mineral and other solid bulk material into analytical size in power industry, coal, chemical processing, metallurgical industry, engineering material, and geological industry, etc. Specification Model SDJC100*60a SDJC150*125a Feed Size(mm) ≤50 ≤100 Discharge Size (mm) 6-13(adjustable) 6-38(adjustable) Productivity(kg/h) 45-550 500-1000 Power Requirement(V) 380 380 Max Power(kW) 1.5 4 Weight(kg) 200 420 Dimension(mm) 940*640*730 1245*700*1010 Speed of Eccentric Shaft(r/min) 466 466 Moisture(Total Moisture) ≤12% ≤12% Highlights Dynamic adjustment and self-protection functions, visual display of plate interval, interval can be adjusted during operation. Crushing size can be controlled without screening test. Avoiding the collision of jaw plate, extend the service life. Jaw plate is made of high-chromium or high-manganese steel (optional). No fixing is needed. The instrument can be placed on a cement floor due to the rubber bottom and foot. With unique sliencer, noise below 85 dB.
