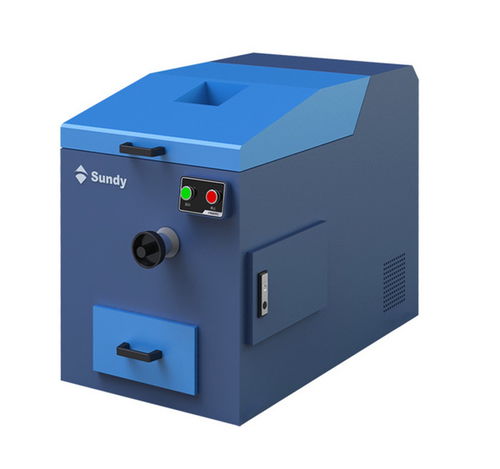

Roller crusher SDRC series
stationary

roller crusher
roller crusher
Add to favorites
Compare this product


Characteristics

Technology
roller
Mobility
stationary
Capacity

Max.: 500 kg/h
(1,102.3 lb/h)

Min.: 250 kg/h
(551.2 lb/h)

Description

Application: SDRC Roller Crusher is designed to intermittently or continuously crush hard mineral and other solid bulk material into analytical size. It is widely used in power industry, coal, chemical processing, metallurgical industry, engineering material, and geological industry, etc. Specification: Model SDRC250*75a SDRC250*150a Feed Size (mm) ≤13 ≤13 Discharge Size (mm) 0.5-3(adjustable) 0.5-3(adjustable) Loading Capacity(kg/h) 250-300 400-500 Power Requirement(V) 380 380 Max. Power(kW) 1.5 3 N.W.(kg) 300 330 Dimension(mm) 1250*700*820 1250*700*820 Moisture(Total Moisture) ≤12% ≤12% Highlights: The single screw adjustment device for controlling roller interval is located inside equipment. With unique sliencer, noise is much lower than standard requirement. Stable operation. The instrument can be placed on the cement floor without fixing. Auto power off if the cover is opened.
