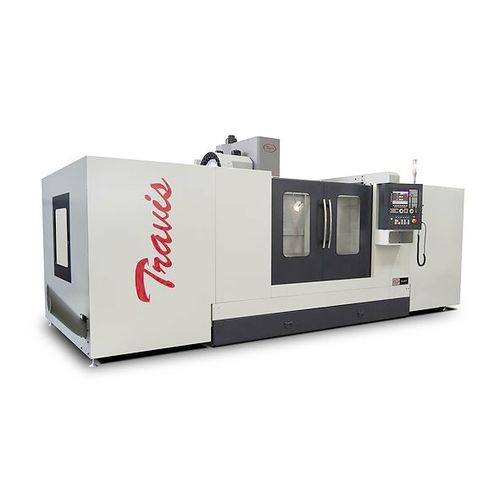

3-axis CNC machining center M-2000verticalCE
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Other characteristics
- CE
- X travel
2,000 mm
(78.74 in)- Y travel
860 mm
(33.86 in)- Z travel
710 mm
(27.95 in)- Rotational speed
Min.: 1 rpm
(6 rad.min-1)Max.: 6,000 rpm
(37,699 rad.min-1)- Power
20 ch, 30 ch
(20 hp, 30 hp)
Description
Technical Characteristics
Worktable
Surface - 2180 x 810 mm.
Number of slots and measures - 5 - 18 x 100 mm.
Maximum load over table - 1600 Kgs.
Travels & distances
Longitudinal travel (X) - 2000 mm.
Transversal travel (Y) - 860 mm.
Vertical travel (Z) - 710 mm.
Distance spindle nose to table - 100 / 810 mm.
Distance spindle nose to column - 900 mm.
Headstock
Spindle bore taper: - BT-40
Tool holding system: - Pneumatic
Speed range - 1 - 6000 rpm.
Tool changer
Number of tools: - 20 / 24
Type - Umbrella / Random
Maximum tool weight - 8 Kgs.
Tool size - 300 mm.
Ballscrews
Ballscrews diameter X,Y,Z - 40 mm.
Rapid feedrates X,Y - 18000 mm/min
Rapid feedrates Z - 10000 mm/min
Machining feedrates X,Y,Z - 5000 mm/min
Power
Main motor (cont./30min.) - 20 / 30 HP
Servomotors - 20.8 Nm
Coolant pump motor - 0.75 HP
Weight & dimensions
Area occupied - 5080 x 4000 x 2820 mm.
Weight - 8500 Kgs.
Brand: - Travis
