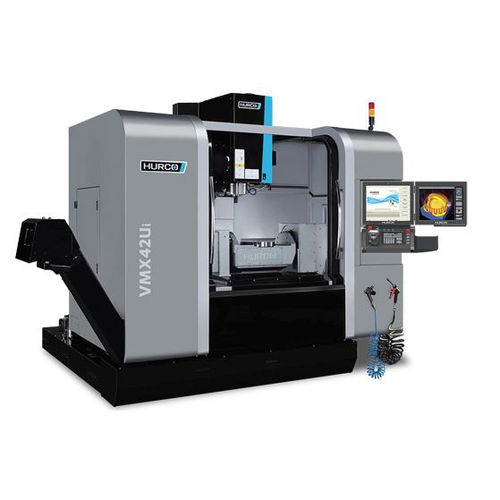

5-axis CNC machining center VMX 42UiverticalSK4040 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- SK40
- Number of tool stations
- 40 tools
- X travel
1,067 mm
(42.01 in)- Y travel
610 mm
(24.02 in)- Z travel
520 mm
(20.47 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
18 kW
(24.47 hp)- Work feed X-axis
38 m/min
- Work feed Y-axis
38 m/min
- Work feed Z-axis
32 m/min
- Table load capacity
250 kg
(551 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
7,200 kg
(15,873.28 lb)- Overall length
4,600 mm
(181.1 in)- Overall width
3,718 mm
(146.4 in)- Overall height
3,111 mm
(122.5 in)
Description
5-axis workhorse packed with industry leading technologies
TABLE
Spindle nose – table (mm) - 90 - 610
Faceplate- / Partdiameter max. (mm) - 398 / 535
T-Slots (DIN 650) - 6 x 14
SPINDLE
Spindle Torque max. (Nm) - 239
FEEDRATES
Rapid traverse A-/ C-Axis (rpm) - 25 / 25
AUTOMATIC TOOL CHANGER
Tool diameter max. (mm) - 75
Tool length max. (mm) - 300
FURTHER DETAILS
Content coolant tank (l) - 510
Scraper type chip conveyor - Standard
