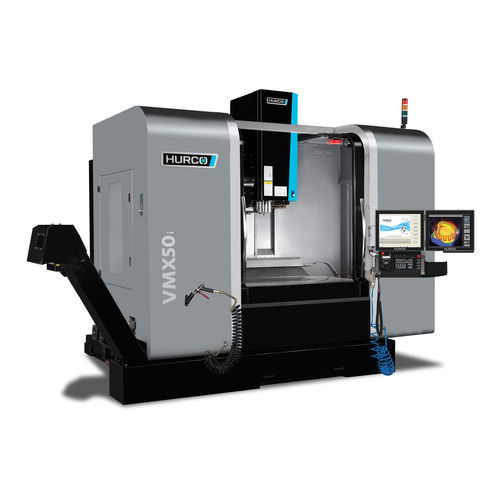

3-axis CNC machining center VMX 50i
verticalSK40SK50

3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
SK40, SK50
Number of tool stations
40 tools, 30 tools
Other characteristics
high-performance
X travel

1,270 mm
(50 in)

Y travel

660 mm
(25.98 in)

Z travel

610 mm
(24.02 in)

Rotational speed

8,000 rpm, 12,000 rpm
(50,265 rad.min-1, 75,398 rad.min-1)

Power

18 kW, 22 kW
(24.47 hp, 29.91 hp)

Work feed X-axis

32 m/min

Work feed Y-axis

32 m/min

Work feed Z-axis

24 m/min

Table load capacity

2,000 kg
(4,409 lb)

Tool weight (max)

7 kg, 15 kg
(15.4 lb, 33.1 lb)

Weight

7,650 kg, 9,150 kg
(16,865.36 lb, 20,172.3 lb)

Overall length

5,049 mm, 5,059 mm
(198.8 in, 199.2 in)

Overall width

3,921 mm, 4,378 mm
(154.4 in, 172.4 in)

Overall height

3,014 mm, 3,240 mm
(118.7 in, 127.6 in)

Description

Power and flexibility for demanding applications TABLE Spindle nose – table (mm) - 101 - 711 Table working surface W x D (mm) - 1.500 x 660 T-Slots (DIN 650) - 6 x 18 x 100 AUTOMATIC TOOL CHANGER Tool length max. (mm) - 300 FURTHER DETAILS Content coolant tank (l) - 894 Scraper type chip conveyor - Standard
