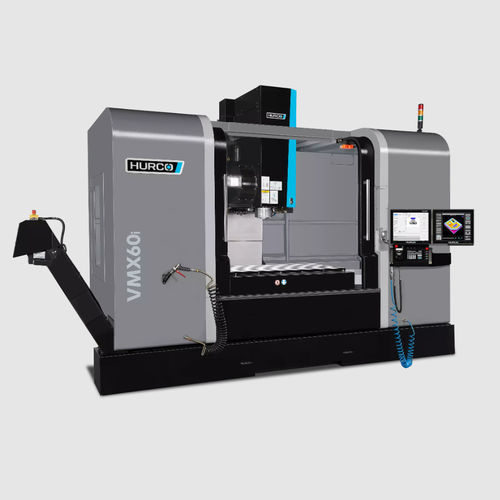

3-axis CNC machining center VMX 60iverticalSK40SK50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- SK40, SK50
- Number of tool stations
- 40 tools, 60 tools, 30 tools
- Other characteristics
- high-performance
- X travel
1,524 mm
(60 in)- Y travel
660 mm
(25.98 in)- Z travel
610 mm
(24.02 in)- Rotational speed
8,000 rpm, 12,000 rpm
(50,265 rad.min-1, 75,398 rad.min-1)- Power
18 kW, 22 kW
(24.47 hp, 29.91 hp)- Work feed X-axis
32 m/min
- Work feed Y-axis
32 m/min
- Work feed Z-axis
24 m/min
- Table load capacity
2,000 kg
(4,409 lb)- Tool weight (max)
7 kg, 15 kg
(15.4 lb, 33.1 lb)- Weight
8,650 kg, 9,850 kg
(19,069.99 lb, 21,715.53 lb)- Overall length
5,607 mm
(220.7 in)- Overall width
3,936 mm
(155 in)- Overall height
3,240 mm
(127.6 in)
Description
TABLE
Spindle nose – table (mm) - 102 - 711
Table working surface W x D (mm) - 1.680 x 660
T-Slots (DIN 650) - 6 x 18 H8 x 100
AUTOMATIC TOOL CHANGER
Tool length max. (mm) - 300
FURTHER DETAILS
Content coolant tank (l) - 894
Scraper type chip conveyor - Standard
