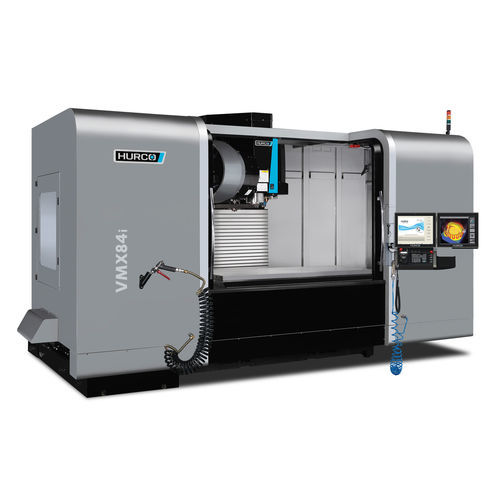

3-axis CNC machining center VMX 84iverticalSK40SK50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- SK40, SK50
- Number of tool stations
- 40 tools, 32 tools
- Other characteristics
- high-performance
- X travel
2,135 mm
(84.06 in)- Y travel
865 mm
(34.06 in)- Z travel
762 mm
(30 in)- Rotational speed
8,000 rpm, 12,000 rpm
(50,265 rad.min-1, 75,398 rad.min-1)- Power
18 kW, 22 kW
(24.47 hp, 29.91 hp)- Work feed X-axis
18 m/min
- Work feed Y-axis
18 m/min
- Work feed Z-axis
14 m/min
- Table load capacity
2,270 kg
(5,004 lb)- Tool weight (max)
7 kg, 15 kg
(15.4 lb, 33.1 lb)- Weight
17,000 kg
(37,478.58 lb)- Overall length
7,574 mm
(298.2 in)- Overall width
4,450 mm
(175.2 in)- Overall height
3,310 mm
(130.3 in)
Description
Premium components and meticulous manufacturing extend the machine's service life
TABLE
Spindle nose – table (mm) - 127 - 887
Table working surface W x D (mm) - 2.185 x 865
T-Slots (DIN 650) - 7 x 18 H8 x 125
AUTOMATIC TOOL CHANGER
Tool length max. (mm) - 300
FURTHER DETAILS
Content coolant tank (l) - 867
Scraper type chip conveyor - Standard
