3-axis machining center VM 30 i
verticalSK4024 tools

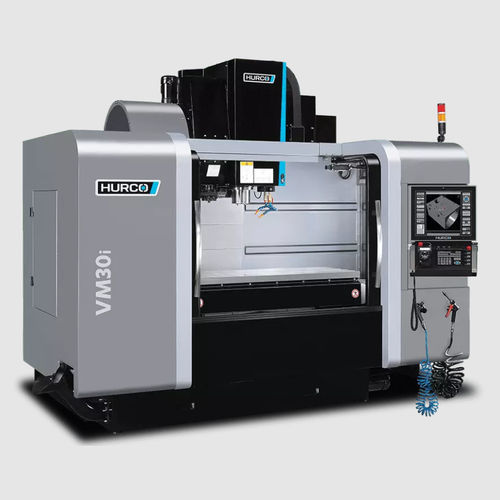

3-axis machining center - VM 30 i - Hurco GmbH Werkzeugmaschinen - vertical / SK40 / 24 tools
3-axis machining center - VM 30 i - Hurco GmbH Werkzeugmaschinen - vertical / SK40 / 24 tools
3-axis machining center - VM 30 i - Hurco GmbH Werkzeugmaschinen - vertical / SK40 / 24 tools - image - 2
3-axis machining center - VM 30 i - Hurco GmbH Werkzeugmaschinen - vertical / SK40 / 24 tools - image - 3
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
SK40
Number of tool stations
24 tools
Applications
for large workpieces
Other characteristics
high-performance
X travel

1,270 mm
(50 in)

Y travel

508 mm
(20 in)

Z travel

508 mm
(20 in)

Rotational speed

10,000 rpm
(62,832 rad.min-1)

Power

15 kW
(20.39 hp)

Work feed X-axis

28 m/min

Work feed Y-axis

28 m/min

Work feed Z-axis

28 m/min

Table load capacity

1,800 kg
(3,968 lb)

Tool weight (max)

7 kg
(15.4 lb)

Weight

4,250 kg
(9,369.65 lb)

Overall length

4,086 mm
(160.9 in)

Overall width

3,312 mm
(130.4 in)

Overall height

2,543 mm
(100.1 in)

Description

TABLE Spindle nose – table (mm) - 102 - 610 Table working surface W x D (mm) - 1.321 x 508 T-Slots (DIN 650) - 5 x 18 x 100 SPINDLE Spindle Torque max. (Nm) - 99 AUTOMATIC TOOL CHANGER Tool diameter max. (mm) - 80 Tool length max. (mm) - 250 FURTHER DETAILS Content coolant tank (l) - 122 Chip auger - Optional
