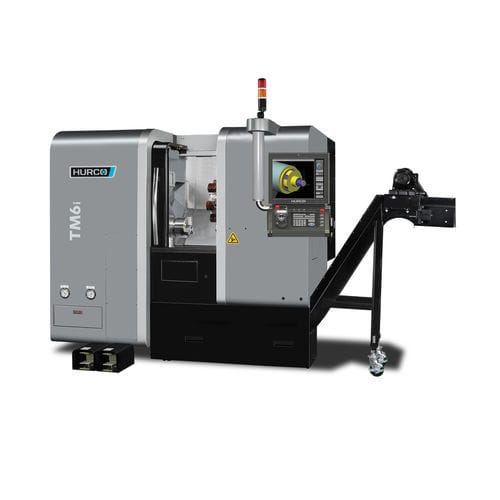

CNC turning center TM 6i2-axisuniversalslant bed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Structure
- universal, slant bed
- Number of tool stations
- 12 tools
- Performance
- powerful
- Diameter
215 mm
(8.46 in)- Spindle speed
6,000 rpm
(37,699.112 rad.min-1)- Bar capacity
32 mm
(1 in)- Axe X
168 mm
(7 in)- Axe Z
356 mm
(14 in)- Rapids on X
30 m/min
- Rapids on Z
30 m/min
- Nominal power
13 kW
(17.7 hp)- Maximum torque
114 Nm
(84 ft.lb)- Overall lenght
3,916 mm
(154 in)- Overall width
2,525 mm
(99 in)- Overall height
2,144 mm
(84 in)- Weight
3,250 kg
(7,165 lb)
Description
Tiny footprint for a powerful slant-bed lathe
MACHINE CAPACITY
Swing over bed diameter (mm) - 405
Swing over cross slide diameter (mm) - 240
Spindle
Chuck diameter (mm) - 169
Draw Tube Diameter (mm) - 45
TURRET
Type - VDI 20
Tool Shank Width (mm) - 19
