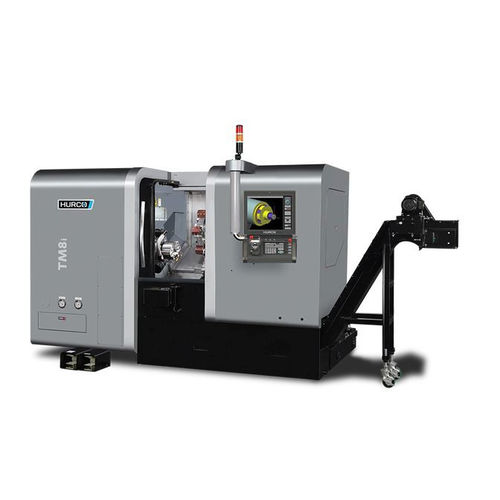

CNC turning center TM 8i2-axisuniversalslant bed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Structure
- universal, slant bed
- Number of tool stations
- 12 tools
- Diameter
256 mm
(10.08 in)- Spindle speed
4,000 rpm
(25,132.741 rad.min-1)- Bar capacity
32 mm
(1 in)- Axe X
203 mm
(8 in)- Axe Z
550 mm
(22 in)- Rapids on X
30 m/min
- Rapids on Z
30 m/min
- Nominal power
23 kW
(31.3 hp)- Maximum torque
221 Nm
(163 ft.lb)- Overall lenght
4,489 mm
(177 in)- Overall width
2,729 mm
(107 in)- Overall height
2,193 mm
(86 in)- Weight
4,050 kg
(8,929 lb)
Description
Short run versatility on a slant-bed lathe
MACHINE CAPACITY
Swing over bed diameter (mm) - 525
Swing over cross slide diameter (mm) - 300
SPINDLE
Chuck diameter (mm)-210
Draw Tube Diameter (mm)-64,5
TURRET
Type - VDI 30
Boring Bar Diameter max. (mm) - 32
Tool Shank Width (mm) - 19
