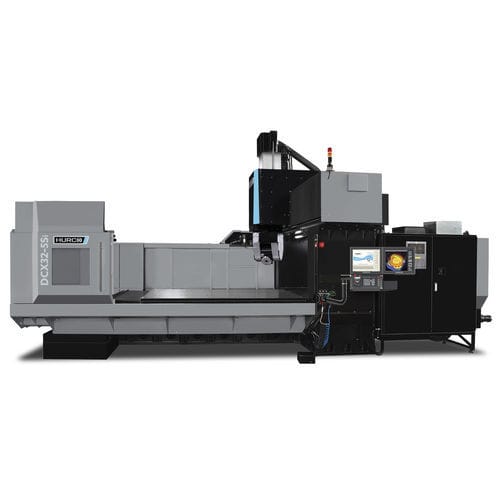

5-axis CNC machining center DCX 32-5 Sihorizontalgantrydouble-column
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- horizontal
- Structure
- gantry, double-column
- Spindle mount
- HSK-63-A
- Number of tool stations
- 40 tools, 60 tools
- X travel
3,200 mm
(125.98 in)- Y travel
2,100 mm
(82.68 in)- Z travel
900 mm
(35.43 in)- Rotational speed
18,000 rpm
(113,097 rad.min-1)- Power
63 kW
(85.66 hp)- Work feed X-axis
15,000 mm/min
(10 in/s)- Work feed Y-axis
15,000 mm/min
(10 in/s)- Work feed Z-axis
10,000 mm/min
(7 in/s)- Table load capacity
11,000 kg
(24,251 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
37,700 kg
(83,114.27 lb)- Overall length
9,982 mm
(393 in)- Overall width
6,815 mm
(268.3 in)- Overall height
5,250 mm
(206.7 in)
Description
TRAVELS
B-Axis (°) - +100 / -110
C-Axis (°) - ±360
TABLE
Spindle nose – table (mm) - 66 - 966
Table working surface W x D (mm) - 3000 x 1700
T-Slots (DIN 650) - 7 x 22 H8 x 220
SPINDLE
Spindle Torque max. (Nm) - 106
FEEDRATES
Rapid traverse B-/ C-Axis (rpm) - 120 / 80
Axis Thrust X/Y/Z (kN) - 61 / 41,5 / 40,6
AUTOMATIC TOOL CHANGER
Tool diameter max. (mm) - 76
Tool length max. (mm) - 300
FURTHER DETAILS
Content coolant tank (l) - 1.470
Scraper type chip conveyor - Standard
Chip auger - Standard
