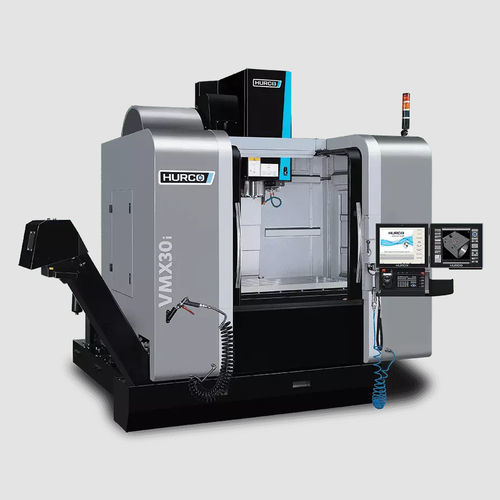

3-axis CNC machining center VMX 30iverticalSK4040 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- SK40
- Number of tool stations
- 40 tools, 30 tools
- Other characteristics
- high-performance
- X travel
762 mm
(30 in)- Y travel
508 mm
(20 in)- Z travel
610 mm
(24.02 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
13.4 kW
(18.22 hp)- Work feed X-axis
38 m/min
- Work feed Y-axis
38 m/min
- Work feed Z-axis
32 m/min
- Table load capacity
1,500 kg
(3,307 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
5,050 kg
(11,133.34 lb)- Overall length
3,939 mm
(155.1 in)- Overall width
4,059 mm
(159.8 in)- Overall height
2,724 mm
(107.2 in)
Description
Intelligent design and sophsticated technology
TABLE
Spindle nose – table (mm) - 152 - 762
Table working surface W x D (mm) - 1.020 x 510
T-Slots (DIN 650) - 5 x 18 x 100
SPINDLE
Spindle Torque max. (Nm) - 214
AUTOMATIC TOOL CHANGER
Tool diameter max. (mm) - 80 / 76
Tool length max. (mm) - 300
FURTHER DETAILS
Content coolant tank (l) - 366
Scraper type chip conveyor - Standard
