3-axis CNC machining center VMX 42HSi
verticalHSK-63-A40 tools

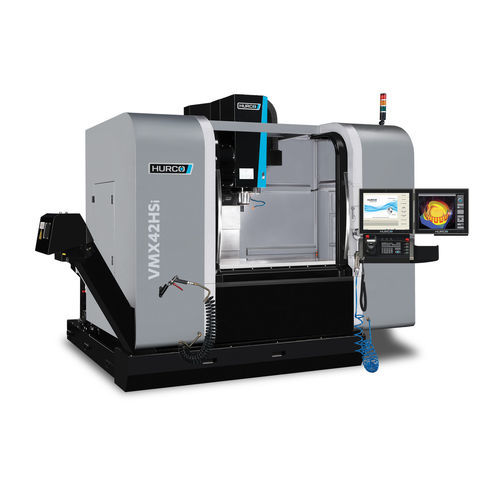

3-axis CNC machining center - VMX 42HSi - Hurco GmbH Werkzeugmaschinen - vertical / HSK-63-A / 40 tools
3-axis CNC machining center - VMX 42HSi - Hurco GmbH Werkzeugmaschinen - vertical / HSK-63-A / 40 tools
3-axis CNC machining center - VMX 42HSi - Hurco GmbH Werkzeugmaschinen - vertical / HSK-63-A / 40 tools - image - 2
3-axis CNC machining center - VMX 42HSi - Hurco GmbH Werkzeugmaschinen - vertical / HSK-63-A / 40 tools - image - 3
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
HSK-63-A
Number of tool stations
40 tools
Applications
for molds
Other characteristics
high-speed
X travel

1,067 mm
(42.01 in)

Y travel

610 mm
(24.02 in)

Z travel

610 mm
(24.02 in)

Rotational speed

20,000 rpm
(125,664 rad.min-1)

Power

35 kW
(47.59 hp)

Work feed X-axis

45 m/min

Work feed Y-axis

45 m/min

Work feed Z-axis

40 m/min

Table load capacity

1,750 kg
(3,858 lb)

Tool weight (max)

7 kg
(15.4 lb)

Weight

7,100 kg
(15,652.82 lb)

Overall length

4,600 mm
(181.1 in)

Overall width

3,718 mm
(146.4 in)

Overall height

2,982 mm
(117.4 in)

Description

TABLE Spindle nose – table (mm) - 152 - 762 Table working surface W x D (mm) - 1.270 x 610 T-Slots (DIN 650) - 5 x 18 x 100 Load max. (uniform distribution) (kg) - 1.750 SPINDLE Spindle Torque max. (Nm) - 119 AUTOMATIC TOOL CHANGER Tool diameter max. (mm) - 75 Tool length max. (mm) - 300 FURTHER DETAILS Content coolant tank (l) - 484 Scraper type chip conveyor - Standard
