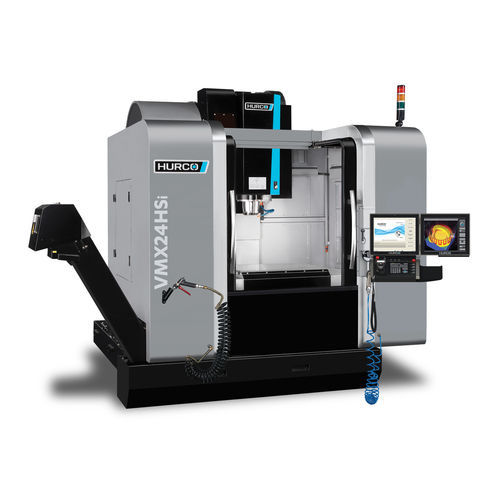

3-axis CNC machining center VMX 24HSiverticalHSK-63-A30 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-63-A
- Number of tool stations
- 30 tools
- Other characteristics
- high-speed
- X travel
610 mm
(24.02 in)- Y travel
508 mm
(20 in)- Z travel
610 mm
(24.02 in)- Rotational speed
20,000 rpm
(125,664 rad.min-1)- Power
35 kW
(47.59 hp)- Work feed X-axis
45 m/min
- Work feed Y-axis
45 m/min
- Work feed Z-axis
40 m/min
- Table load capacity
1,500 kg
(3,307 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
4,900 kg
(10,802.65 lb)- Overall length
3,930 mm
(154.7 in)- Overall width
4,041 mm
(159.1 in)- Overall height
2,773 mm
(109.2 in)
Description
Built to withstand the rigors of high speed machining
TABLE
Spindle nose – table (mm) - 152 - 762
Table working surface W x D (mm) - 760 x 510
T-Slots (DIN 650) - 5 x 18 H8 x 100
SPINDLE
Spindle Torque max. (Nm) - 119
AUTOMATIC TOOL CHANGER
Tool diameter max. (mm) - 80
Tool length max. (mm) - 300
FURTHER DETAILS
Content coolant tank (l) - 367
Scraper type chip conveyor - Standard
