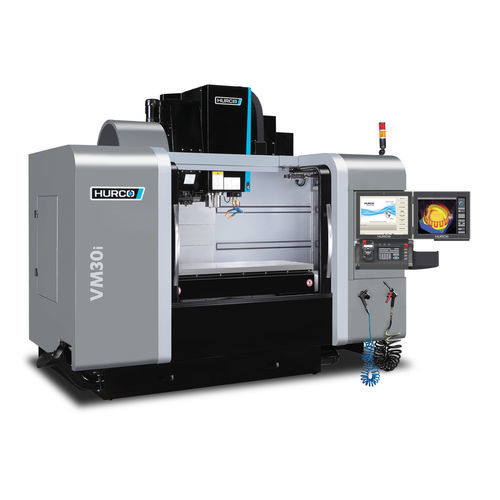

3-axis CNC machining center VM 30iPlus
verticalSK4024 tools

3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
SK40
Number of tool stations
24 tools
X travel

1,270 mm
(50 in)

Y travel

508 mm
(20 in)

Z travel

508 mm
(20 in)

Rotational speed

12,000 rpm
(75,398 rad.min-1)

Power

15 kW
(20.39 hp)

Work feed X-axis

28 m/min

Work feed Y-axis

28 m/min

Work feed Z-axis

28 m/min

Table load capacity

1,800 kg
(3,968 lb)

Tool weight (max)

7 kg
(15.4 lb)

Weight

4,250 kg
(9,369.65 lb)

Overall length

4,086 mm
(160.9 in)

Overall width

3,312 mm
(130.4 in)

Overall height

2,543 mm
(100.1 in)

Description

The plus in display and technical features optimizes ease of use aand efficieny TABLE Spindle nose – table (mm) - 102 - 610 Table working surface W x D (mm) - 1.321 x 508 T-Slots (DIN 650) - 5 x 18 x 100 SPINDLE Spindle Torque max. (Nm) - 82 AUTOMATIC TOOL CHANGER Tool diameter max. (mm) - 80 Tool length max. (mm) - 250 FURTHER DETAILS Content coolant tank (l) - 200 Chip auger - Standard
