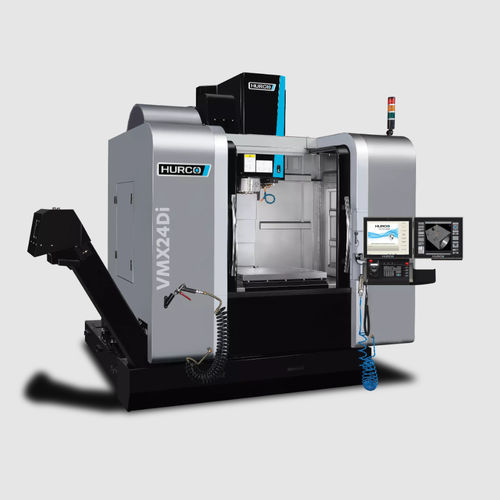

3-axis CNC machining center VMX 24Di
verticalSK4030 tools

3-axis CNC machining center - VMX 24Di - Hurco GmbH Werkzeugmaschinen - vertical / SK40 / 30 tools
3-axis CNC machining center - VMX 24Di - Hurco GmbH Werkzeugmaschinen - vertical / SK40 / 30 tools
3-axis CNC machining center - VMX 24Di - Hurco GmbH Werkzeugmaschinen - vertical / SK40 / 30 tools - image - 2
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
SK40
Number of tool stations
30 tools
Other characteristics
high-performance
X travel

610 mm
(24.02 in)

Y travel

508 mm
(20 in)

Z travel

610 mm
(24.02 in)

Rotational speed

15,000 rpm
(94,248 rad.min-1)

Power

9 kW
(12.24 hp)

Work feed X-axis

45 m/min

Work feed Y-axis

45 m/min

Work feed Z-axis

45 m/min

Table load capacity

1,500 kg
(3,307 lb)

Tool weight (max)

7 kg
(15.4 lb)

Weight

4,748 kg
(10,467.55 lb)

Overall length

3,930 mm
(154.7 in)

Overall width

4,046 mm
(159.3 in)

Overall height

2,994 mm
(117.9 in)

Description

Big capabilities in a small package TABLE Spindle nose – table (mm) - 152 - 762 Table working surface W x D (mm) - 760 x 510 T-Slots (DIN 650) - 5 x 18 H8 x 100 SPINDLE Spindle Torque max. (Nm) - 57 AUTOMATIC TOOL CHANGER Tool diameter max. (mm) - 80 Tool length max. (mm) - 300 FURTHER DETAILS Scraper type chip conveyor - Standard
