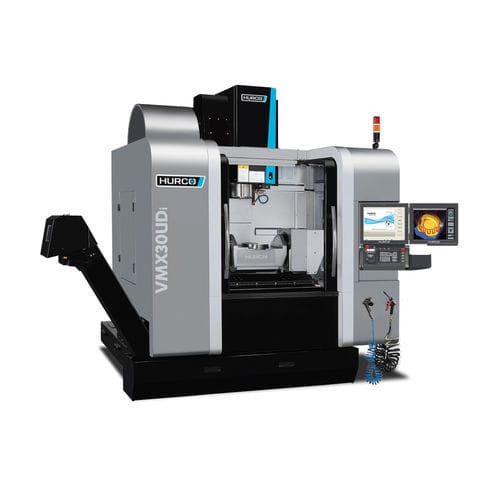

5-axis CNC machining center VMX 30UDiverticalSK4040 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- SK40
- Number of tool stations
- 40 tools
- Other characteristics
- high-speed, high-power
- X travel
762 mm
(30 in)- Y travel
508 mm
(20 in)- Z travel
520 mm
(20.47 in)- Rotational speed
15,000 rpm
(94,248 rad.min-1)- Power
15 kW
(20.39 hp)- Work feed X-axis
38 m/min
- Work feed Y-axis
38 m/min
- Work feed Z-axis
32 m/min
- Table load capacity
200 kg
(441 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
5,500 kg
(12,125.42 lb)- Overall length
3,940 mm
(155.1 in)- Overall width
4,058 mm
(159.8 in)- Overall height
3,166 mm
(124.6 in)
Description
Power, speed and unbeatable value - the ideal machine for medium-sized 5-axis parts
Travels
A-Axis (°) - +30 / -110
C-Axis (°) - 360
TABLE
Spindle nose – table (mm) - 90 - 610
Faceplate- / Partdiameter max. (mm) - 248 / 435
T-Slots (DIN 650) - 6 x 12
SPINDLE
Spindle Torque max. (Nm) - 95,5
FEEDRATES
Rapid traverse A-/ C-Axis (rpm) - 25 / 25
AUTOMATIC TOOL CHANGER
Tool diameter max. (mm) - 76
Tool length max. (mm) - 300
FURTHER DETAILS
Content coolant tank (l) - 367
Scraper type chip conveyor - Standard
