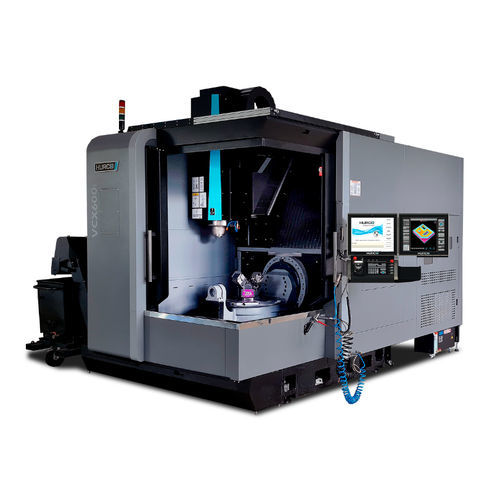

5-axis CNC machining center VCX 600iXPverticalrotating tableSK40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- rotating table
- Spindle mount
- SK40
- Number of tool stations
- 40 tools
- X travel
820 mm
(32.28 in)- Y travel
550 mm
(21.65 in)- Z travel
500 mm
(19.69 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
16 kW
(21.75 hp)- Work feed X-axis
36 m/min
- Work feed Y-axis
36 mm/min
(0 in/s)- Work feed Z-axis
36 m/min
- Weight
10,000 kg
(22,046.23 lb)- Overall length
4,482 mm
(176.5 in)- Overall width
4,635 mm
(182.5 in)- Overall height
3,217 mm
(126.7 in)
Description
TRAVELS
B-Axis (°) - -110 / +110
C-Axis (°) - 360
SPINDLE
Spindle Torque (S6) (Nm) - 102
FEEDRATES
Rapid traverse B-Axis (rpm) - 50
Rapid traverse B-/ C-Axis (rpm) - 100
Axis Thrust X/Y/Z (kN) - 22,4 / 22,4 / 22,4
