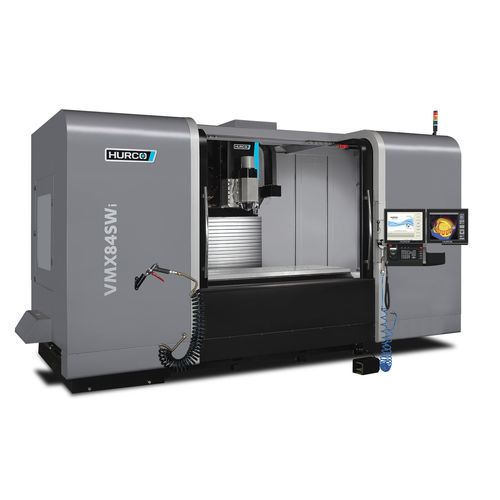

5-axis CNC machining center VMX 84SWiverticalSK4040 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- SK40
- Number of tool stations
- 40 tools
- X travel
2,134 mm
(84.02 in)- Y travel
864 mm
(34.02 in)- Z travel
762 mm
(30 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
36.5 kW
(49.63 hp)- Work feed X-axis
18 m/min
- Work feed Y-axis
18 m/min
- Work feed Z-axis
14 m/min
- Table load capacity
2,268 kg
(5,000 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
16,750 kg
(36,927.43 lb)- Overall length
7,557 mm
(297.5 in)- Overall width
4,501 mm
(177.2 in)- Overall height
3,163 mm
(124.5 in)
Description
Huge travels with swivel head and optional A-axis or C-axis
TRAVELS
B-Axis (°) - +/- 90
TABLE
Spindle nose – table (mm) - 127 - 889
Table working surface W x D (mm) - 2.184 x 865
T-Slots (DIN 650) - 7 x 18 x 125
SPINDLE
Spindle Torque max. (Nm) - 120
FEEDRATES
Rapid traverse B-Axis (rpm) - 50
AUTOMATIC TOOL CHANGER
Tool diameter max. (mm) - 76
Tool length max. (mm) - 250
FURTHER DETAILS
Content coolant tank (l) - 1.046
Scraper type chip conveyor - Standard
