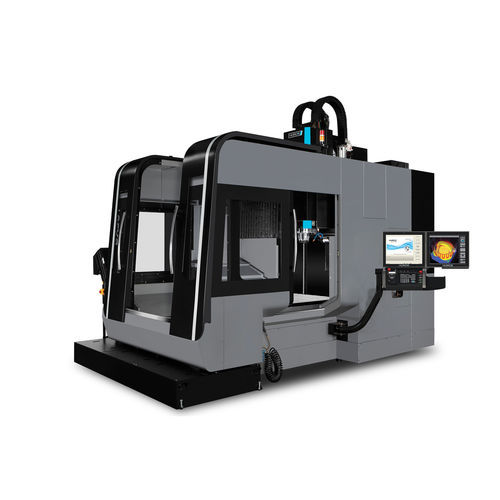

3-axis CNC machining center BX 50Tiverticaldouble-columnSK50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- double-column
- Spindle mount
- SK50
- Number of tool stations
- 40 tools
- X travel
1,350 mm
(53.15 in)- Y travel
950 mm
(37.4 in)- Z travel
600 mm
(23.62 in)- Rotational speed
10,000 rpm
(62,832 rad.min-1)- Power
26 kW
(35.35 hp)- Work feed X-axis
36,000 mm/min
(24 in/s)- Work feed Y-axis
36,000 mm/min
(24 in/s)- Work feed Z-axis
36,000 mm/min
(24 in/s)- Table load capacity
2,500 kg
(5,512 lb)- Tool weight (max)
15 kg
(33.1 lb)- Weight
13,000 kg
(28,660.09 lb)- Overall length
4,640 mm
(182.7 in)- Overall width
5,244 mm
(206.5 in)- Overall height
3,561 mm
(140.2 in)
Description
Stability - combined with accuracy and high surface quality
TABLE
Spindle nose – table (mm) - 193 - 793
Table working surface W x D (mm) - 1500 x 960
T-Slots (DIN 650) - 6 x 22 x 160
SPINDLE
Spindle Torque max. (Nm) - 336
AUTOMATIC TOOL CHANGER
Tool diameter max. (mm) - 125
Adjacent sides empty (mm) - 220
Tool length max. (mm) - 300
FURTHER DETAILS
Content coolant tank (l) - 790
Chip auger - Standard
