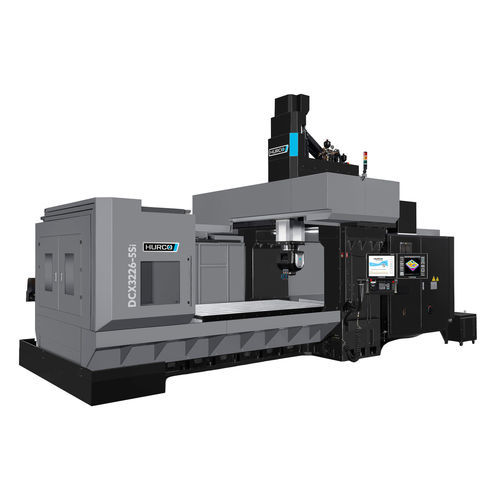

5-axis CNC machining center DCX 3226 HT-5 Siverticalgantrydouble-column
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- gantry, double-column
- Spindle mount
- HSK-A 100
- Number of tool stations
- 40 tools, 60 tools
- X travel
3,200 mm
(125.98 in)- Y travel
2,450 mm
(96.46 in)- Z travel
1,100 mm
(43.31 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
53 kW
(72.06 hp)- Work feed X-axis
15,000 mm/min
(10 in/s)- Work feed Y-axis
15,000 mm/min
(10 in/s)- Work feed Z-axis
10,000 mm/min
(7 in/s)- Table load capacity
14,000 kg
(30,865 lb)- Tool weight (max)
30 kg
(66.1 lb)- Overall length
10,382 mm
(408.7 in)- Overall width
7,165 mm
(282.1 in)- Overall height
6,263 mm
(246.6 in)
Description
TRAVELS
B-Axis (°) - ±110
C-Axis (°) - ±360
TABLE
Spindle nose – table (mm) - 201 - 1.301
Table working surface W x D (mm) - 3.000 x 2.100
T-Slots (DIN 650) - 9 x 22mm x 220mm
SPINDLE
Spindle Torque (S6 - 40%) (Nm) - 253
Max Tool Length (mm) - 300
Max Tool Diameter (mm) - 240
FEEDRATES
Cutting Feedrate X/Y/Z (m/min) - 15 / 15 / 10
