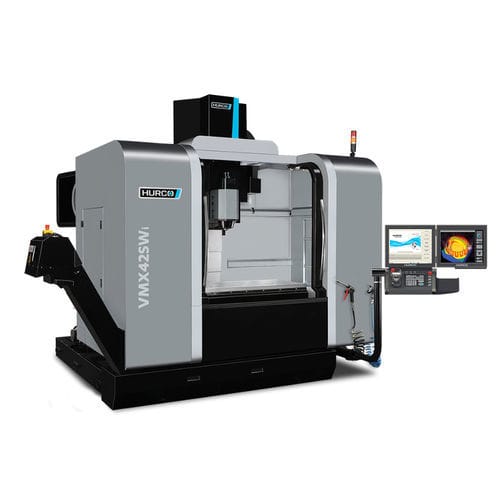

4-axis CNC machining center VMX 42SWiverticalSK4040 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-axis
- Spindle orientation
- vertical
- Spindle mount
- SK40
- Number of tool stations
- 40 tools
- X travel
1,067 mm
(42.01 in)- Y travel
610 mm
(24.02 in)- Z travel
610 mm
(24.02 in)- Rotational speed
12,000 rpm, 16,000 rpm
(75,398 rad.min-1, 100,531 rad.min-1)- Power
36.5 kW
(49.63 hp)- Work feed X-axis
38 m/min
- Work feed Y-axis
38 m/min
- Work feed Z-axis
32 m/min
- Table load capacity
1,360 kg
(2,998 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
7,130 kg
(15,718.96 lb)- Overall length
4,598 mm
(181 in)- Overall width
3,713 mm
(146.2 in)- Overall height
3,149 mm
(124 in)
Description
TABLE
Spindle nose – table (mm) - 152 - 762
Table working surface W x D (mm) - 1.270 x 610
T-Slots (DIN 650) - 5 x 18 x 100
TRAVELS
B-Axis (°) - +/- 90
SPINDLE
Spindle Torque max. (Nm) - 118
FEEDRATES
Rapid traverse B-Axis (rpm) - 50
AUTOMATIC TOOL CHANGER
Tool diameter max. (mm) - 76
Tool length max. (mm) - 250
FURTHER DETAILS
Content coolant tank (l) - 340
Scraper type chip conveyor - Standard
