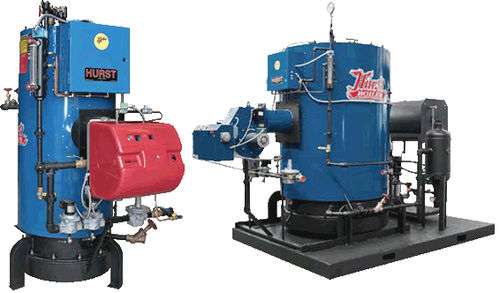

Hot water boiler VIX series

gasfire tubevertical

Vertical fire-tube design features high efficient X-ID Finned Fire-Tubes. SKID MOUNTED PACKAGED SYSTEMS install easily. VIX Series offers a smaller foot print than most typical vertical boilers. Available from 10 to 80 HP, 30-125 BHP,15-300 steam, 30-160 hot water. Totally new design Industrial grade construction, 2-Pass fire tube design with enhanced heat transfer features. The VIX Series can offer higher effi ciencies than standard vertical boilers. Its 100% water backed and built to deliver years of reliable service. No burned-out side walls primary fl ue gases pass via water backed heat transfer tubes. No refractory backed fi nned passages to burn out. Smaller foot print... more than 50% of standard vertical boilers. Extended heating surface The VIX Series optimizes heat transfer with technology advanced fi re tubes. These ultra-effi cient tubes capture and transfer heat well beyond the curve of standard fi re tubes, eliminating the need for turbulator inserts required for achieving optimal effi ciencies. Easy access to burner and eye-high control panel. All valves and controls located within reach. Removable turn-around box Simply loosen the lug nuts and lower the turn-around section for easy inspection. Innovative vessel design Constant calm water levels with water-to-steam stabilization features. Large steam chamber with internal water separator insures dry highest quality steam.
