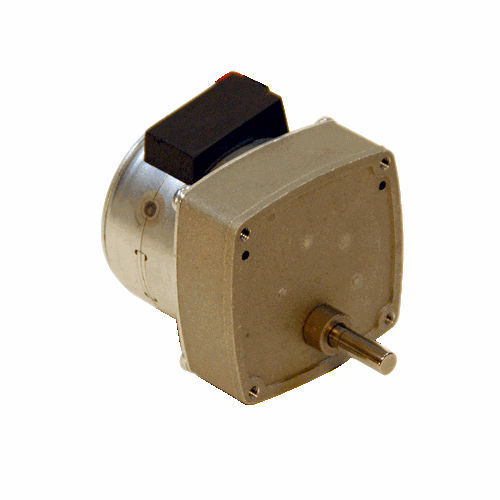

AC gear-motor LYG55 seriespermanent magnetsynchronousspur
Add to favorites
Compare this product
Characteristics
- Motor type
- AC, permanent magnet, synchronous
- Type
- spur
- Shaft orientation
- parallel-shaft
- Power
- 0 W...10 W
- Torque
- 1 - 5 Nm, 0.5 - 1 Nm, 0.1 - 0.2 Nm, 0.2 - 0.5 Nm, 0 - 0.1 Nm
- Product applications
- industrial
- Other characteristics
- compact
Description
Permanent Magnet AC Synchronous LYG55 Geared Specifications:
Frame Size: 55mm
Torque Range: Up to 200 oz-in [1412 mN-m]
Output Speed: 1 to 300 RPM
Standard Voltages: 115/230 Vac & 24 Vac 50/60 Hz
Insulation Class: Class A (105°C)
Lead Wire: 4 leads 22AWG (approx. 9 inches [228.6 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Gear Unit: - Zinc Die Cast - AGMA 7 Standard with hardened steel gears
Shaft Bearings: Sleeve/Ball (see Drawings Below)
Recognition: E53578(N), Component-Impedance Protected Motors
Capacitor is required for operation. Capacitor supplied with 115 Vac motors.
Note: Typical data subject to change without notification.
