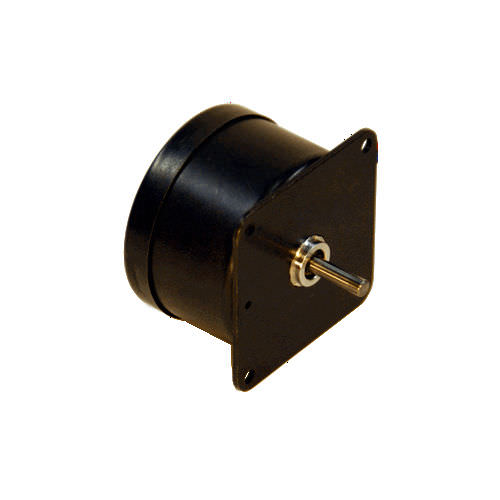

DC motor PAS, PBS seriesstepper24 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- stepper
- Voltage
- 24 V, 12 V, 6 V
- Configuration
- permanent magnet
- Number of poles
- 2-pole
- Applications
- industrial
- Power
8 W, 8.5 W
(0.011 hp, 0.012 hp)- Torque
0.0226 Nm, 0.0339 Nm, 0.036 Nm
(0.0167 ft.lb, 0.025 ft.lb, 0.0266 ft.lb)- Rotational speed
250 rpm, 500 rpm
(1,570.8 rad.min-1, 3,141.59 rad.min-1)
Description
Permanent Magnet DC Stepper PAS, PBS Direct Drive Specifications:
Step Angle: 7.5° & 15°
Position Accuracy: +/- 5% max.
Number of Phases: 4 phase bifilar
Insulation Class: Class A (105°C)
Lead Wire: 6 leads 24AWG (approx. 8.5 inches [215.9 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Shaft Bearing: Sleeve Bearing
Note: Typical data subject to change without notification
Addtional Information:
PAS and PBS series motors provide users a choice of step angles of 7.5° or 15°, standard or Hi-Torque rotors and a choice of mounting plates. Voltages other than those shown as well as 2-phase bipolar windings may be specified.
Notes:
• Sleeve bearings are standard.
• The square mounting plate is standard, a diamond shaped plate may be specified.
