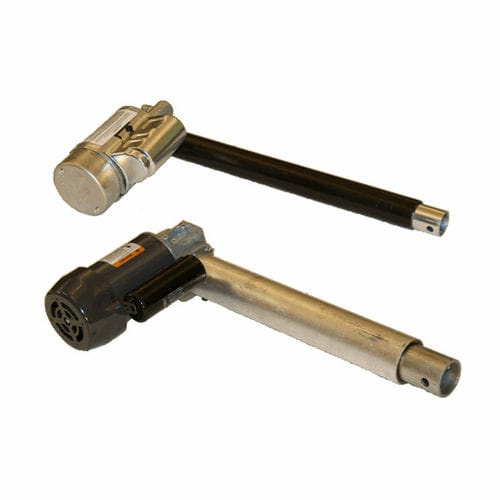

Electric cylinder K037A seriesACindustrialright angle
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Motor
- AC
- Applications
- industrial
- Other characteristics
- right angle
- Stroke
10 in, 12 in
- Speed
203.2 mm/min, 482.6 mm/min, 508 mm/min
(0.13 in/s, 0.32 in/s, 0.33 in/s)
Description
Series 3.7" AC Induction Linear Actuator Specifications:
Rotation:Reversible
Duty Cycle:25 %
Thermal Protection:Automatic Reset
Lead Wire:4 leads 18 AWG (approx. 16 inches [406.4 mm])
Maximum Ambient Temp:40°C/104°F
Motor Construction:
(See table below for options) - Totally Enclosed Non-Ventilated (TENV)
Totally Enclosed Fan-Cooled (TEFC)
Operating Voltage / Frequency - 115 Vac / 60 Hz
Applications:Pushing, Pulling, Lifting, and Positioning
Note:Typical data subject to change without notification.
