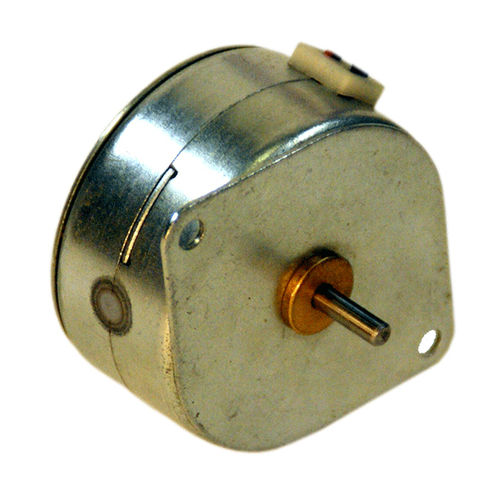

AC motor LYD42 seriessynchronous24 Vcapacitor
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- synchronous
- Voltage
- 24 V
- Configuration
- capacitor, permanent magnet, compact
- Applications
- industrial
- Other characteristics
- direct-drive
- Power
4 W
(0.005 hp)- Torque
0.0282 Nm
(0.0208 ft.lb)- Rotational speed
250 rpm, 300 rpm
(1,570.8 rad.min-1, 1,884.96 rad.min-1)
Description
Permanent Magnet AC Synchronous LYD42 Direct Drive Specifications:
Frame Size: 42mm
Output Speed: 250/300 RPM
Standard Voltages: 115 Vac & 24 Vac 50/60 Hz
Insulation Class: Class A (105°C)
Lead Wire: 4 leads 28AWG (approx. 9 inches [228.6 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Shaft Bearings: Sleeve bearings
Recognition: E53578(N), Component-Impedance Protected Motors
Capacitor is required for operation. Capacitor supplied with 115 Vac motors.
Note: Typical data subject to change without notification
