Partial discharge testing device GDJF-2006

circuit breakertransformerfor cables

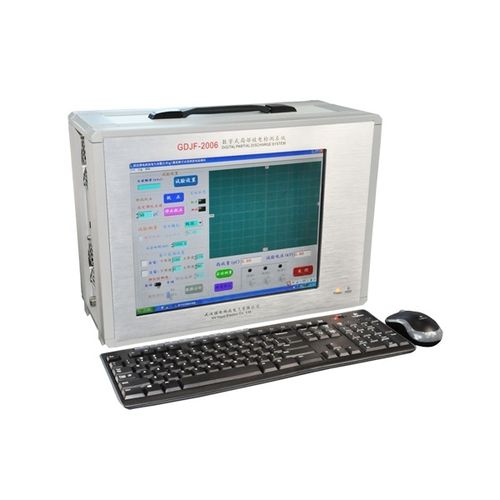

GDJF-2006 Digital Partial Discharge Analyzer. Product Description GDJF-2006 Digital Partial Discharge Detector is widely used for detecting partial discharge of high voltage equipment such as power transformers, instrument transformer, HV circuit breaker, Zinc oxide surge arrester, power cable. It also can make type tests and monitor insulation operation. Features With high speed, big capacity data acquisition card. Continuously collect partial discharge data, good repeatability and high accuracy. Functions of testing, analyzing(multi-parameter analysis, two-dimension atlas analysis, three-dimension atlas analysis), data storage, report and print. Display waveform(ellipse, sine wave, line), discharge value and test voltage. Suitable for 50Hz, 150Hz frequency power supply, up to 400Hz. Automatic tracking external power supply frequency. Big color LCD screen. Large memory, with USB port. With anti-false operation function. Automatic adjusting gain during testing and rectifying. Anti-interference design. Specifications Capacitance range: 6pF-250μF Sensitivity: 120db, gain difference 20±1db, asymmetry of positive/negative pulse response<1db Time window: width 1°-360°, can be rotated at any time. Test voltage: 0-200kV, error <3% F.S.
