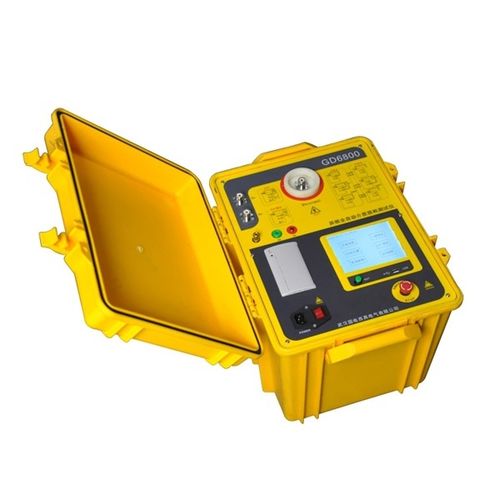

Capacitance tester GD6800

dissipation factorfor transformersportable

GD6800 Capacitance and Dissipation Factor Tester Product Description GD6800 measures the capacitance and dielectric loss factor (tgδ) of high voltage electric equipment. It is integrated structure, built-in dielectric loss test bridge, variable frequency adjustable power supply, boosting transformer and SF6 standard capacitor. High voltage source is generated by internal inverter of the instrument, which is used for testing test object after transformer boost. If adding a insulation cup and temperature control device, dielectric loss of insulating oil can be tested. Features Touch LCD screen display. Calendar chip and large storage inside. Save testing result according to time order, check history record and print the result. The instrument data can be exported through U disk, and can be used to view and manage the data through the software on PC. Multiple testing mode, with modes of inside high voltage, outside high voltage, inner standard, external standard, GST/UST, self-excitation. High voltage(more than 10kV) dielectric loss test can be made in the situation of external standard outside high voltage. Test full sealed CVT (Capacitive Voltage Transformer) C1 and C2 dielectric loss and capacitance at the same time. Also test CVT transformation ratio and voltage angle difference. The dielectric loss and capacitance value of C0 in the upper end of CVT can be measured by using the reverse shielding method. High speed sampling signal. Inverter and sampling circuit inside are digitized controlled. Output voltage is adjusted continuously. LCR automatic measurement. Inductance, capacitance, resistance can be measured and displayed.
