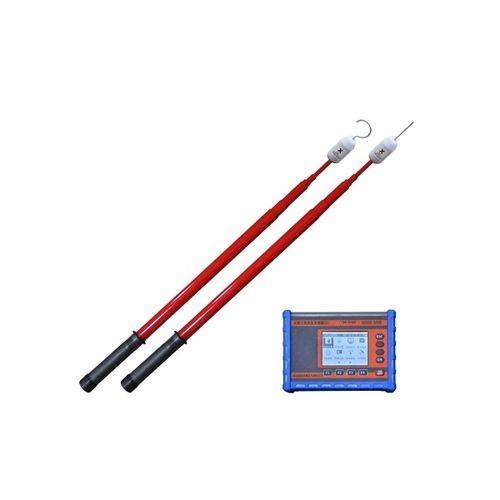

High-voltage detector GDHX-9700

phaseinspectionreal-time

GDHX-9700 Phase Detector General Information GDHX-9700 Phase Detector is mainly used in electric power lines, phase and phase sequence calibration in substation, with main functions including electrical inspection, phase calibration and phase sequence measurement. It uses double shielding and brand new digital circuits, with strong anti-interference, accorded with EMC standards, suitable for various electromagnetic interference situations. The high voltage phase signal of measured lead will be transmitted directly after treatment, the handset will receive and make phase comparison, determine the results after phase detection, real-time display phase angle difference and vector.It uses wireless transmission technology, safe and reliable, fast and accurate, suitable for using at different voltage levels (10V-500KV). When checking the grid structure, it is able to accurately identify the relative phase of different leads for the three-phase connected line, without any electrical connection between two measurement components, which makes the application of the measurement device very flexible and safe. Features Voltage range: 10V~500KV, applicable for various voltage grades. Accuracy: from a short distance: error ≤±3°; from a long distance: error ≤±3°. Sampling rate: 10 times/second. Date and time setting: date and time adjustment, easy for users to browse, view the historical data. Backlight setting: normally on, normally off, user-defined within 0~999s. Auto shut-down: never, user-defined within 0~999 minutes. In-phase: ≤20° (user-defined if phase threshold is within 0-90°, default 20°)
