Ground tester GDCR2000G+
earth resistancefor electrical equipmenthandheld

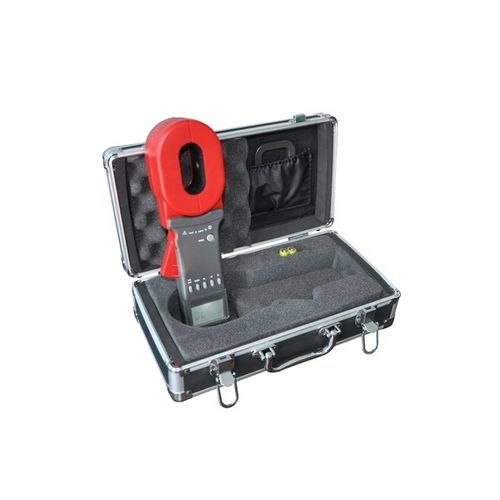

Ground tester - GDCR2000G+ - HV Hipot Electric Co., Ltd - earth resistance / for electrical equipment / handheld
Ground tester - GDCR2000G+ - HV Hipot Electric Co., Ltd - earth resistance / for electrical equipment / handheld
Ground tester - GDCR2000G+ - HV Hipot Electric Co., Ltd - earth resistance / for electrical equipment / handheld - image - 2
Ground tester - GDCR2000G+ - HV Hipot Electric Co., Ltd - earth resistance / for electrical equipment / handheld - image - 3
Add to favorites
Compare this product


Characteristics

Test type
ground, earth resistance
Tested product
for electrical equipment
Configuration
handheld
Other characteristics
digital

Description

GDCR2000G+ Clamp Ground Resistance Tester General Information GDCR2000G+ clamp type earth resistance tester is widely used for grounding resistance measurement and loop resistance measurement of electrical equipment in electric power, telecommunications, meteorology, oilfield , construction and industrial field . When measuring the grounding system with circuit, no need to disconnect the grounding down conductor, and no auxiliary electrode is needed, which is safe and fast. GDCR2000G+ series clamp ground resistance meter measures the combined value of grounding body resistance and ground lead resistance. The GDCR2000G+ series clamp-type grounding resistance meter has long jaws and round jaws. The long jaws are especially suitable for flat steel grounding. The GDCR2000G+ clamp has passed the explosion-proof certification and meets the requirements of IEC60079-0:1998. Its explosion-proof mark is Exia II BT3Ga. Explosion-proof certificate number: CE13.2263. It can be used in the corresponding flammable and explosive environment. Features Booting immediately into the test. Using the most advanced algorithms and digital integrated processing technology. More suitable for handheld operation . New design, 6-key operation panel. With sound and light alarm function, "beep--beep--beep--" alarm sound. With interference signal recognition indication function, “beep--beep--beep--” sound prompt. The measurement range is 0.01 Ω to 1200 Ω. Can store 99 groups data, lower power consumption, maximum start and operating current is less than 50mA.
