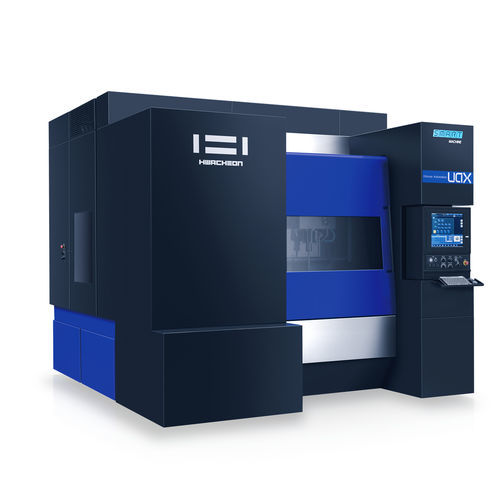

3-axis CNC machining center SMART UaXverticalHSK A-63BBT40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK A-63, BBT40
- Other characteristics
- high-precision, high-productivity
- X travel
1,300 mm
(51.18 in)- Y travel
750 mm
(29.53 in)- Z travel
420 mm
(16.54 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
11 kW, 18.5 kW
(14.96 hp, 25.15 hp)- Work feed X-axis
20,000 mm/min
(13 in/s)- Work feed Y-axis
20,000 mm/min
(13 in/s)- Tool weight (max)
3 kg
(6.6 lb)- Weight
10,000 kg, 11,500 kg
(22,046.23 lb, 25,353.16 lb)- Overall length
4,900 mm
(192.9 in)- Overall width
3,310 mm
(130.3 in)- Overall height
2,862 mm
(112.7 in)
Description
SMART UaX is a ‘smart machining center’ optimized for machining graphite electrode.
The world’s first AI ‘Smart Machine’ is integrated with Hwacheon’s future convergence software, machining know-how and automation technology. Simply inputting the CAD data allows the machine to automatically do CAM calculation and machining which dramatically increases the productivity of the user.
Cooling of the spindle and frames minimizes thermal deformation to ensure high precision during long-time machining. Hwacheon software installed on the machine improves productivity and precision, and always provides the same machining quality.
