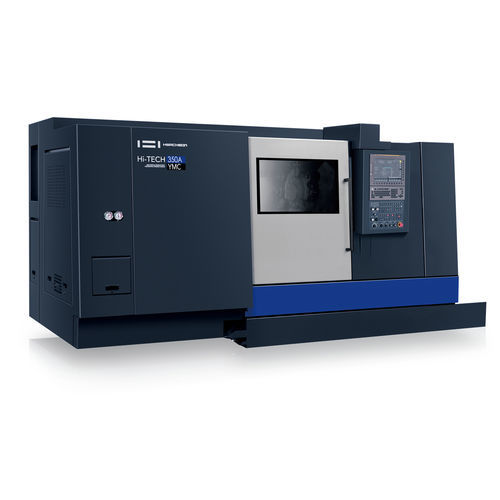

CNC turning center Hi-TECH 350 series4-axisA2-6A2-8
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 4-axis
- Spindle mount
- A2-6, A2-8
- Number of tool stations
- 12 tools
- Performance
- high-precision, high-productivity, high-rigidity
- Other characteristics
- Y-axis
- Diameter
700 mm
(27.56 in)- Spindle speed
5,000 rpm
(31,415.927 rad.min-1)- Axe X
260 mm, 280 mm
(10 in, 11 in)- Axe Z
790 mm
(31 in)- Rapids on X
20,000 mm/min
(13 in/s)- Rapids on Z
24,000 mm/min
(16 in/s)- Nominal power
7.5 kW, 15 kW, 18.5 kW, 22 kW
(10.2 hp, 20.4 hp, 25.2 hp, 29.9 hp)- Coolant capacity
190 l, 240 l
(50 gal, 63 gal)- Overall lenght
3,500 mm, 4,100 mm
(138 in, 161 in)- Overall width
2,045 mm
(81 in)- Overall height
2,205 mm
(87 in)- Weight
Max.: 8,900 kg
(19,621 lb)Min.: 7,300 kg
(16,094 lb)
Description
Hi-TECH 350 provides a rigid and stable heavy duty cutting based on a highly rigid box-way feed structure designed with an air-floating system and bed structure while maintains high precision even during long-term processing by minimizing thermal displacement
Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.
