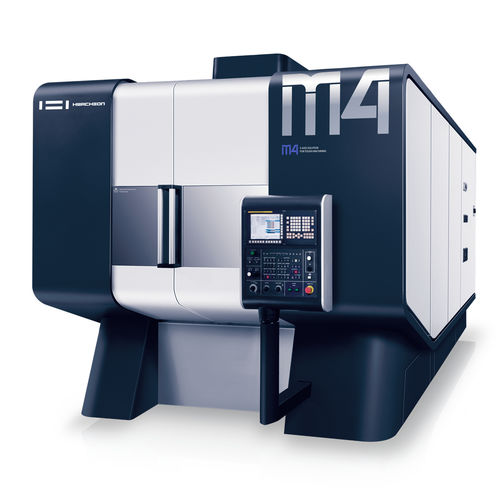

5-axis CNC machining center M4-5AXuniversalCAT50HSK-100-A
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- universal
- Spindle mount
- CAT50, HSK-100-A, SK50
- Associated functions
- cutting
- Other characteristics
- high-performance, high-precision, high-rigidity
- X travel
950 mm
(37.4 in)- Y travel
1,000 mm
(39.37 in)- Z travel
650 mm
(25.59 in)- Rotational speed
8,000 rpm, 12,000 rpm
(50,265 rad.min-1, 75,398 rad.min-1)- Power
30 kW, 55 kW
(40.79 hp, 74.78 hp)- Work feed X-axis
36,000 mm/min
(24 in/s)- Work feed Y-axis
36,000 mm/min
(24 in/s)- Tool weight (max)
20 kg
(44.1 lb)- Weight
28,000 kg, 28,500 kg
(61,729.43 lb, 62,831.74 lb)- Overall length
5,126 mm
(201.8 in)- Overall width
6,336 mm
(249.4 in)- Overall height
4,252 mm
(167.4 in)
Description
M4-5AX reduces setting time, cost, and errors of complex-shaped parts that require multiple processes by enabling the entire machining process in one-setting of the material.
Rigid and accurate machining is ensured with a high performance in-house designed spindle. Cooling of the spindle and frames minimizes thermal deformation to ensure high precision during long-time machining.
Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing 5-axis machining centers.
