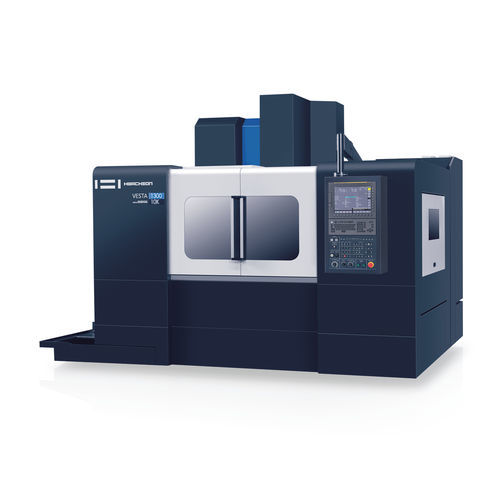

3-axis CNC machining center VESTA-1300verticalBT 40BT 50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40, BT 50, CAT40, CAT50, SK40, SK50, BBT40, ISO 50
- Number of tool stations
- 24 tools
- Other characteristics
- high-precision, high-productivity
- X travel
1,300 mm
(51.18 in)- Y travel
670 mm
(26.38 in)- Z travel
650 mm
(25.59 in)- Rotational speed
8,000 rpm, 10,000 rpm, 12,000 rpm, 15,000 rpm
(50,265 rad.min-1, 62,832 rad.min-1, 75,398 rad.min-1, 94,248 rad.min-1)- Power
Max.: 33 kW
(44.87 hp)Min.: 11 kW
(14.96 hp)- Work feed X-axis
40,000 mm/min
(26 in/s)- Work feed Y-axis
40,000 mm/min
(26 in/s)- Table load capacity
1,300 kg
(2,866 lb)- Tool weight (max)
8 kg, 20 kg
(17.6 lb, 44.1 lb)- Weight
10,000 kg, 10,500 kg, 11,500 kg
(22,046.23 lb, 23,148.54 lb, 25,353.16 lb)- Overall length
4,325 mm
(170.3 in)- Overall width
2,645 mm
(104.1 in)- Overall height
2,950 mm, 3,150 mm
(116.1 in, 124 in)
Description
VESTA-1300 ensures high productivity and high precision based on a machine structure optimized for parts machining. Cooling of the spindle and frames minimizes thermal displacement to ensure high precision during long-time machining.
Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.
