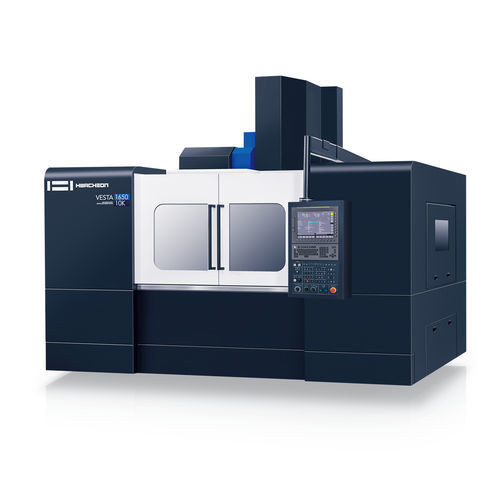

3-axis CNC machining center VESTA-1650verticalBT 40BT 50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40, BT 50, CAT40, CAT50, SK40, SK50
- Other characteristics
- high-precision, high-productivity
- X travel
1,650 mm
(64.96 in)- Y travel
750 mm
(29.53 in)- Z travel
675 mm
(26.57 in)- Rotational speed
8,000 rpm, 10,000 rpm, 12,000 rpm, 15,000 rpm
(50,265 rad.min-1, 62,832 rad.min-1, 75,398 rad.min-1, 94,248 rad.min-1)- Power
11 kW, 18.5 kW, 22 kW, 26 kW
(14.96 hp, 25.15 hp, 29.91 hp, 35.35 hp)- Work feed X-axis
30,000 mm/min
(20 in/s)- Work feed Y-axis
30,000 mm/min
(20 in/s)- Tool weight (max)
8 kg
(17.6 lb)- Weight
12,000 kg, 12,500 kg
(26,455.47 lb, 27,557.78 lb)- Overall length
4,200 mm
(165.4 in)- Overall width
4,264 mm
(167.9 in)- Overall height
3,180 mm, 3,197 mm, 3,208 mm, 3,408 mm
(125.2 in, 125.9 in, 126.3 in, 134.2 in)
Description
VESTA-1650 ensures high productivity and high precision based on a machine structure optimized for parts machining. Cooling of the spindle and frames minimizes thermal displacement to ensure high precision during long-time machining.
Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.
