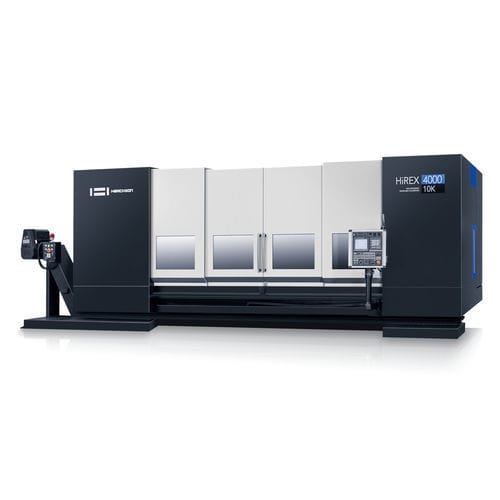

3-axis CNC machining center HiREX-4000verticaltraveling-columnBT 40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- traveling-column
- Spindle mount
- BT 40, CAT40, SK40, BBT40
- Number of tool stations
- 24 tools
- Other characteristics
- high-precision, high-productivity, rigid
- X travel
4,000 mm
(157.48 in)- Y travel
520 mm, 620 mm
(20.47 in, 24.41 in)- Z travel
570 mm
(22.44 in)- Rotational speed
10,000 rpm, 12,000 rpm
(62,832 rad.min-1, 75,398 rad.min-1)- Power
11 kW, 15 kW, 18.5 kW
(14.96 hp, 20.39 hp, 25.15 hp)- Work feed X-axis
36,000 mm/min
(24 in/s)- Work feed Y-axis
36,000 mm/min
(24 in/s)- Table load capacity
4,300 kg, 4,650 kg
(9,480 lb, 10,251 lb)- Tool weight (max)
8 kg
(17.6 lb)- Weight
20,000 kg, 20,500 kg
(44,092.45 lb, 45,194.76 lb)- Overall length
7,700 mm
(303.1 in)- Overall width
3,010 mm, 3,175 mm
(118.5 in, 125 in)- Overall height
3,000 mm, 3,250 mm
(118.1 in, 128 in)
Description
HiREX-4000 ensures rigid and precise machining with its traveling column structure and a high quality in-house designed spindle. Cooling of the spindle and frames minimizes thermal deformation to ensure high precision during long-time machining.
Large set-up area and high precision machining capability for a long period of time enables a wide range of applications from cutting long materials to unmanned work by installing multiple vises.
Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing Machining Centers.
