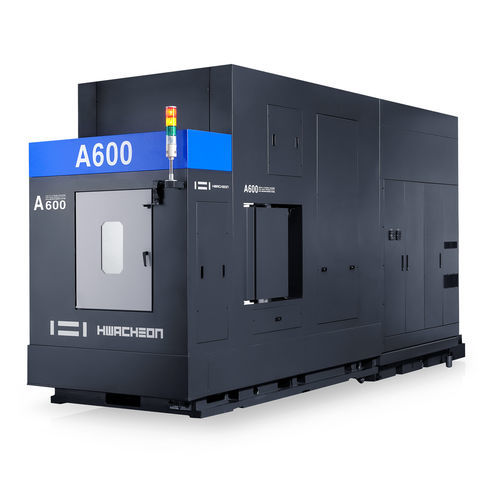

3-axis CNC machining center A600horizontalBT 40BT 50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- Spindle mount
- BT 40, BT 50, HSK A-63, HSK-100-A
- Number of tool stations
- 40 tools
- Other characteristics
- high-precision, high-productivity, high-rigidity, with integrated pallet changer
- X travel
560 mm, 600 mm
(22.05 in, 23.62 in)- Y travel
580 mm, 600 mm
(22.83 in, 23.62 in)- Z travel
800 mm
(31.5 in)- Rotational speed
8,000 rpm, 16,000 rpm
(50,265 rad.min-1, 100,531 rad.min-1)- Power
18.5 kW, 22 kW
(25.15 hp, 29.91 hp)- Work feed X-axis
60,000 mm/min
(39 in/s)- Work feed Y-axis
60,000 mm/min
(39 in/s)- Table load capacity
600 kg
(1,323 lb)- Tool weight (max)
8 kg
(17.6 lb)- Overall length
6,353 mm, 7,174 mm
(250.1 in, 282.4 in)- Overall width
1,824 mm, 1,980 mm, 2,746 mm, 2,877 mm, 3,246 mm
(71.8 in, 78 in, 108.1 in, 113.3 in, 127.8 in)- Overall height
3,165 mm, 3,518 mm
(124.6 in, 138.5 in)
Description
A600 ensures rigid and accurate machining with its in-house designed spindle and cooling of the spindle and frames minimizes thermal deformation to ensure high precision during long-time machining.
Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.
