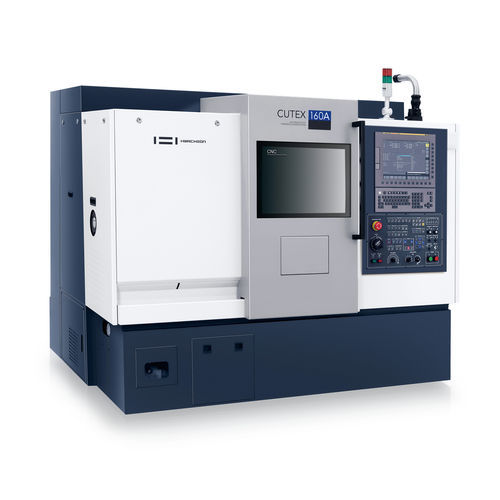

CNC turning center CUTEX-160 series A2-6A2-512 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle mount
- A2-6, A2-5
- Number of tool stations
- 12 tools
- Diameter
550 mm
(21.65 in)- Spindle speed
4,500 rpm, 5,000 rpm, 6,000 rpm
(28,274.334 rad.min-1, 31,415.927 rad.min-1, 37,699.112 rad.min-1)- Rapids on X
36,000 mm/min
(24 in/s)- Rapids on Z
36,000 mm/min
(24 in/s)- Nominal power
2.2 kW, 3.2 kW, 7.5 kW, 15 kW
(3 hp, 4.4 hp, 10.2 hp, 20.4 hp)- Coolant capacity
81 l
(21 gal)- Overall lenght
2,373 mm
(93 in)- Overall width
1,520 mm
(60 in)- Overall height
1,720 mm
(68 in)- Weight
3,550 kg, 3,650 kg
(7,826 lb, 8,047 lb)
Description
CUTEX-160 maintains high precision even during long-term processing by minimizing thermal displacement based on a rigid construction and compact structure.
Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.
