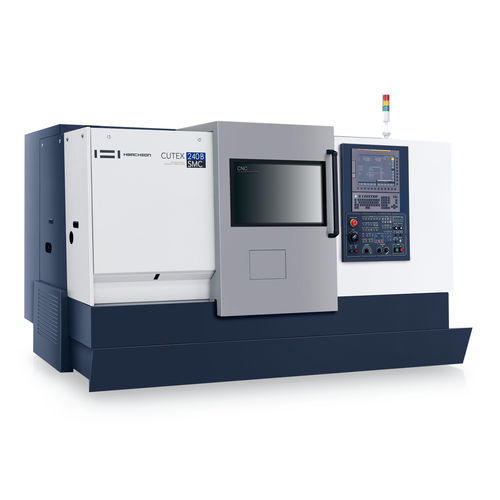

CNC turning center CUTEX-240 series 3-axisA2-6A2-8
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Spindle mount
- A2-6, A2-8, A2-5
- Number of tool stations
- 12 tools, 10 tools
- Performance
- high-precision, high-productivity
- Other characteristics
- compact
- Diameter
580 mm
(22.83 in)- Spindle speed
3,500 rpm, 5,000 rpm, 6,000 rpm
(21,991.149 rad.min-1, 31,415.927 rad.min-1, 37,699.112 rad.min-1)- Axe X
215 mm
(8 in)- Axe Z
665 mm, 700 mm
(26 in, 28 in)- Rapids on X
36,000 mm/min
(24 in/s)- Rapids on Z
36,000 mm/min
(24 in/s)- Nominal power
15 kW, 18.5 kW
(20.4 hp, 25.2 hp)- Coolant capacity
200 l
(53 gal)- Overall lenght
3,230 mm
(127 in)- Overall width
1,815 mm
(71 in)- Overall height
1,915 mm
(75 in)- Weight
5,500 kg, 5,600 kg, 5,700 kg
(12,125 lb, 12,346 lb, 12,566 lb)
Description
CUTEX-240 maintains high precision even during long-term processing by minimizing thermal displacement based on a rigid construction and compact structure.
Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.
