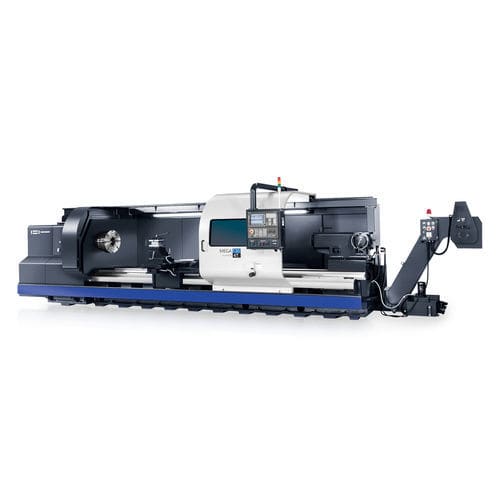

CNC turning center MEGA-130flatbed12 tools4 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Structure
- flatbed
- Number of tool stations
- 12 tools, 4 tools
- Applications
- heavy-duty
- Performance
- precision, high-rigidity
- Diameter
1,300 mm
(51.18 in)- Spindle speed
Max.: 630 rpm
(3,958.407 rad.min-1)Min.: 20 rpm
(125.664 rad.min-1)- Nominal power
37 kW, 45 kW, 55.5 kW
(50.3 hp, 61.2 hp, 75.5 hp)- Coolant capacity
Max.: 570 l
(151 gal)Min.: 220 l
(58 gal)- Overall lenght
3,000 mm
(118 in)- Overall width
6,707 mm, 7,707 mm, 8,707 mm, 9,707 mm, 10,707 mm
(264 in, 303 in, 343 in, 382 in, 422 in)- Overall height
2,520 mm
(99 in)- Weight
Max.: 29,500 kg
(65,036 lb)Min.: 13,500 kg
(29,762 lb)
Description
MEGA-130 is a flatbed horizontal CNC lathe optimized for machining precision parts of shaft shape such as main shafts and large pipes in the fields of shipbuilding, wind power, aerospace and defense industries.
MEGA-130 ensures stable and powerful machining based on a high rigidity box way type feed system and an integrated bed structure, and maintains high precision even during long-term machining by minimizing thermal displacement.
Catalogs
Complete catalog
124 Pages
2012 HC Insight
16 Pages
