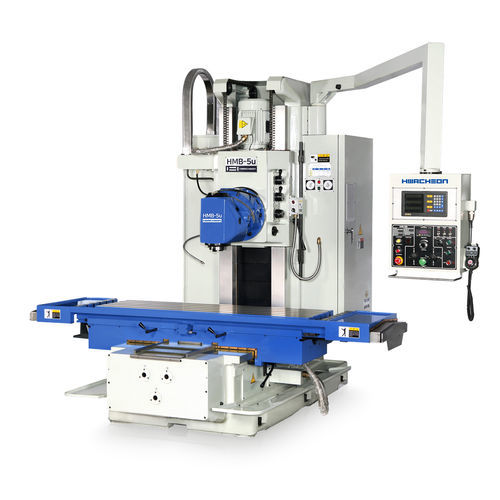

3-axis CNC milling machine HMB-5uverticalrigid
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Other characteristics
- rigid
- X travel
1,600 mm
(62.99 in)- Y travel
650 mm
(25.59 in)- Z travel
750 mm
(29.53 in)- Rotational speed
Max.: 1,650 rpm
(10,367 rad.min-1)Min.: 40 rpm
(251 rad.min-1)- Power
7.5 kW
(10.2 hp)- Work feed X-axis
30,000 mm/min
(20 in/s)- Work feed Y-axis
30,000 mm/min
(20 in/s)- Table load capacity
1,500 kg
(3,307 lb)- Weight
7,000 kg
(15,432.36 lb)- Overall length
2,760 mm
(108.7 in)- Overall width
2,370 mm
(93.3 in)- Overall height
2,743 mm
(108 in)
Description
HMB-5u provides rigid and stable milling through its wide bed structure.
A wide range of line-up and options can be selected based on the need of the user. User convenience has been maximized for easy and convenient use of the machine.
