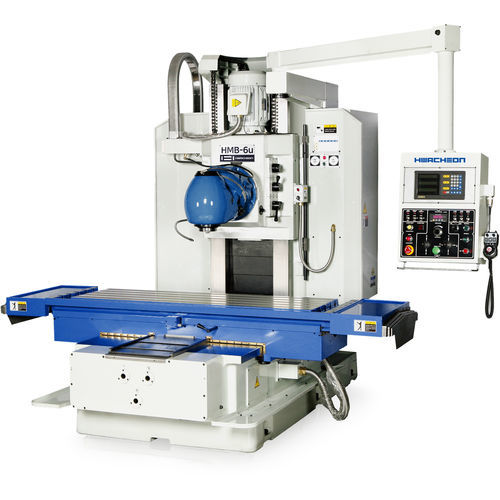

3-axis CNC milling machine HMB-6uverticalhigh-rigidity
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Other characteristics
- high-rigidity
- X travel
1,700 mm
(66.93 in)- Y travel
750 mm
(29.53 in)- Z travel
850 mm
(33.46 in)- Rotational speed
Min.: 32 rpm
(201 rad.min-1)Max.: 1,400 rpm
(8,796 rad.min-1)- Power
11 kW
(14.96 hp)- Work feed X-axis
3,000 mm/min
(2 in/s)- Work feed Y-axis
3,000 mm/min
(2 in/s)- Table load capacity
2,000 kg
(4,409 lb)- Weight
8,900 kg
(19,621.14 lb)- Overall length
2,860 mm
(112.6 in)- Overall width
2,845 mm
(112 in)- Overall height
2,900 mm
(114.2 in)
Description
HMB-6u provides rigid and stable milling through its wide bed structure.
A wide range of line-up and options can be selected based on the need of the user. User convenience has been maximized for easy and convenient use of the machine.
