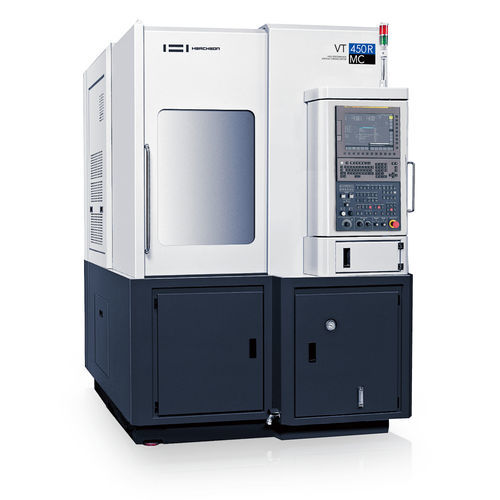

CNC turning center VT-450 seriesvertical2-axisrigid
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 2-axis
- Structure
- rigid
- Spindle mount
- A2-8
- Number of tool stations
- 10 tools
- Applications
- heavy-duty, for mass production
- Performance
- high-precision, high-productivity, high-performance
- Diameter
610 mm
(24.02 in)- Spindle speed
Max.: 2,500 rpm
(15,707.963 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Axe X
260 mm
(10 in)- Axe Z
480 mm
(19 in)- Rapids on X
24,000 mm/min
(16 in/s)- Rapids on Z
20,000 mm/min
(13 in/s)- Nominal power
2.2 kW, 3.7 kW, 18.5 kW, 22 kW
(3 hp, 5 hp, 25.2 hp, 29.9 hp)- Coolant capacity
150 l
(40 gal)- Overall lenght
1,806 mm, 3,962 mm
(71 in, 156 in)- Overall width
2,197 mm
(86 in)- Overall height
2,548 mm, 2,880 mm
(100 in, 113 in)- Weight
7,500 kg, 15,400 kg, 15,500 kg
(16,535 lb, 33,951 lb, 34,172 lb)
Description
VT-450 provides a rigid and stable heavy duty cutting based on a highly rigid box-way feed structure designed with an air-floating system and bed structure while maintains high precision even during long-term processing by minimizing thermal displacement
Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines
The spindle position can be selected in two types, left and right, and with a wide range of machine types and compact design, such as using two machines with one control panel, it is particularly capable of processing and automation of brake discs, drums, hubs and valves.
