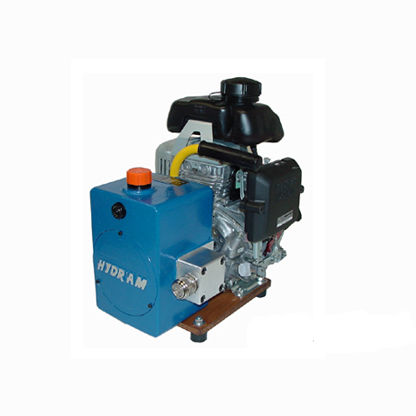

Hydraulic power unit with combustion engine GHTL 1S series

Add to favorites

Compare this product

Characteristics

Power source

with combustion engine

Operating pressure

Min.: 150 bar
(2,176 psi)

Max.: 700 bar
(10,153 psi)

Nominal power

2 kW
(2.7 hp)

Flow rate

1.8 l/min
(0.48 us gal/min)

Tank capacity

4 l
(1.06 gal)

Description

Lightweight Petrol engine driven hydraulic units Single stage pump, distributor allows 1 tool to function alternately, with a rapid approach speed on the distributor. OPTION 1 Tubular chassis in light alloy integrating the transporting handle Lateral guides for storing hoses Tool support on chassis Characteristics Oil capacity : 4 L First stage flow at 150 bar : - Second stage flow at 700 bar : 1,8 l/mn Dimensions L x l x H(mm) : 420 x 290 x 375 Weight : 22,2 kg Conformity EN 13204 : MTO Engine capacity : 3 HP
