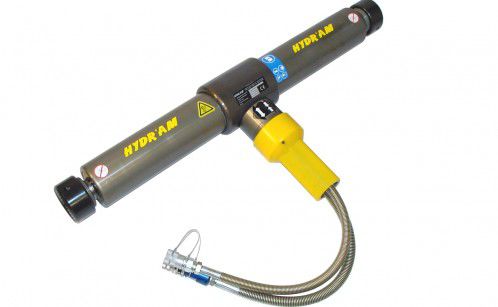

Hydraulic cylinder VHES 425 series

double-actinglight alloywater-resistant

Unit is made of hardened high strength light alloy. Can be used in wet conditions. Tool comprises : 1 Double action cylinder 1 Ergonomically shaped control handle with integral safety device and piloting check valves 1 Set of 0.5 meter long hoses, automatic locking anti-pollution HP quick action couplers with metal protection plugs 1 The ram body is unencumbered , simplifying its positioning and operation 2 Threaded end pieces with interchangeable diamond pointed pads Pressure relief valve for hose on coupler end Characteristics Max. spreading force : 190 kN Max. traction force : 108 kN Stroke (mm) A : 2 x 212,5 Closed length (mm) B : 775 Open length (mm) C : 1200 Weight : 16,4 kG Dimensiones B x D x H (mm) : 775 x 106 x 311 Number of pistons : 2 Compliance EN 13204 : R194/425-16,4 Operating pressure : 700 bar
